1.Seal Auto-Wrapping machine is medium size with maximum 400mm plastic wrap.
2.Adjustable bag formation, easy to change packing size.
3.Touch-dial length set-up to reduce usage of plastic wrap.
4.Electric spotting bevel gear to assist in easy positioning and cutting.
5.All surfaces in contact with product are stainless steel.
Application:
Capable of wrapping endless different products in the food and non-food sectors.
Solid materials can be packed together such as Instant Noodle, Ice-Bar, Tissue Paper, Fried bread stick, Frozen Food; Hardware and Vehicle Parts etc.

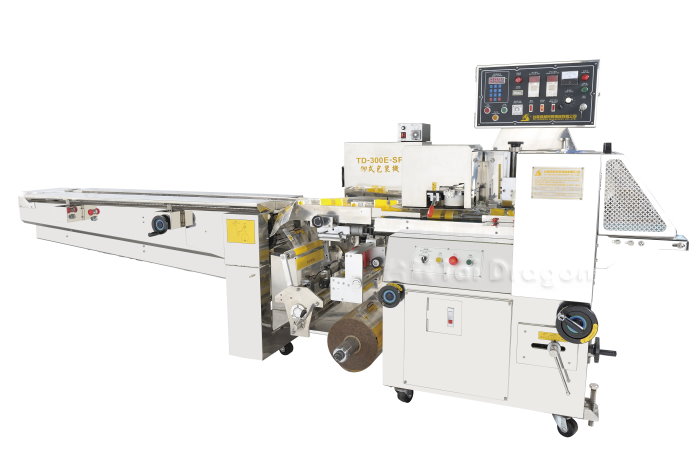

Top Seal Auto-Wrapping
Product ID: TD-300ESPInquiry
Description
Feature
Samples:
 |
 |
 |
| Tissue Paper (Multi-pack) | Tissue Paper (Multi-pack) | Tissue Paper (Multi-pack) |
 |
 |
 |
| Door-Handle | Disposable Syringe | Spoon |
Specification Table
|
Machine Dimensions and Weight |
|
|
Length (cm) |
430 |
|
Width (cm) |
100 |
|
Height (cm) |
150 |
|
Net Weight (N.W.Kg) |
900 |
|
Gross Weight (G.W.Kg) |
1250 |
|
Electrical Features |
|
|
Voltage (V) |
220 |
|
Main Motor (HP) |
1 (DC) |
|
Electric Heater (KW) |
2.4KW 220V |
|
Control System |
Electrical Switch With The Hided Speed Control Button |
|
Frequency (HZ) |
60 |
|
Safty Device |
Emergency Stop Button |
|
Technical Features |
|
|
Sealing Mode |
Continuous sealing with heated crimp wheel and straight bar end seal |
|
Sealing Structure |
Adjustable rotating end seal bars |
|
Sealing Style |
Former, controls film & Heat melt |
|
Feeding Method |
Infeed conveyor with pusher arms |
|
Discharge Method |
Rubber belt conveyor |
|
Sealing Sides |
Three sides sealing |
|
Packing Speed (Bags/min) |
25-150 (Depending on packing size and material) |
|
Max. Width of Packing Material (mm) |
400 |
|
Min. and Max. Packing Length (mm) |
80 -300 |
|
Min. and Max. Packing Width (mm) |
30 - 140 |
|
Min. and Max. Packing Height (mm) |
10 - 65 |
