Product ID: TD-500Inquiry
This Horizontal Auto-Wrapping Machine is suitable for large size of solid products. This machine features consistent heat sealing even on high speed rates. It can be modified to suit special products upon the customers’ request.
All surfaces in contact with product are stainless steel.
Application:
Capable of wrapping endless different products in the food and non-food sectors.
Ideal for products such as Rice Noodles, Tissue Paper or Napkin etc.
Samples:
 |
 |
 |
| Rice Noodle | Shrimp Pastry | Hot Pot |
TD-500SC Horizontal Auto-Wrapping Machine (Stainless Finish and HMI Touch Screen Control Panel)

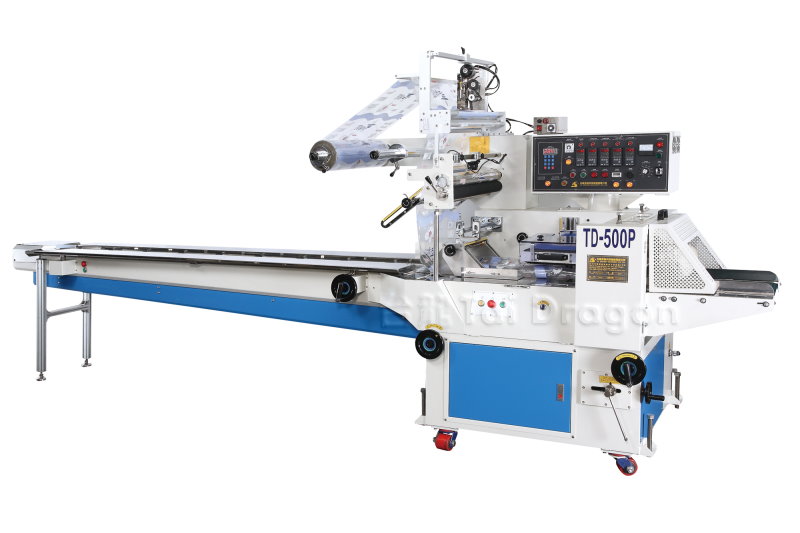

TD-500P Horizontal Auto-Wrapping Machine (Paint FInish and Press Button Control Panel)
| Machine Dimensions and Weight | |
|
Total Length (cm) |
476 |
|
Total Width (cm) |
110 |
|
Total Height (cm) |
172 (Excludes Date-Coder) |
|
Net Weight (N.W.Kg) |
900 |
|
Gross Weight (G.W.Kg) |
1200 |
| Electrical Features | |
|
Voltage (V) |
220 |
|
Main Motor (HP) |
1 (DC) |
|
Electric Heater (KW) |
2.44 KW 220V |
|
Frequency (HZ) |
60 |
|
Safety Device |
Emergency Stop Button |
| Technical Features | |
|
Sealing Style |
Continuous sealing with heated crimp wheel and straight bar end seal |
|
Sealing Structure |
Adjustable rotating end seal bars |
|
Sealing Mode |
Former, controls film & Heat melt |
|
Feeding Method |
In-feed conveyor with pusher arms |
|
Discharge Method |
Rubber belt conveyor |
|
Sealing Sides |
Three sides sealing |
|
Packing Speed (Bags/min) |
25-150 ppm depending on packing size & material |
|
Max. Width of Packing Material (mm) |
700 |
|
Min. and Max. Packing Length (mm) |
100 - 350 |
|
Min. and Max. Packing Width (mm) |
70 - 250 |
|
Min. and Max. Packing Height (mm) |
10 - 120 |
