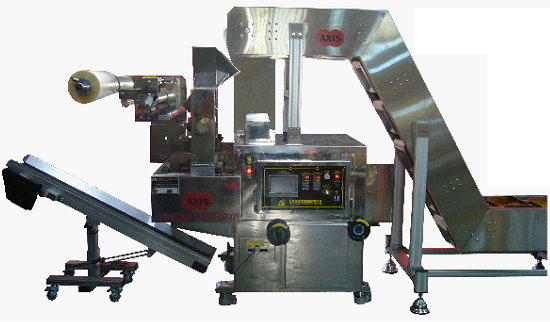

Product ID: TD-880-XU-CSInquiry
Features :
1) An adjustable former is equipped in this machine, different sizes can be adjusted at any time(in order to improve the traditional fixed former).
2) Movable sealing, cutting position can be adjusted at any time.
Application :
Different kinds of granules such as coffee beans, peanuts, melon seeds, macaroni, frozen dumpling, meat- ball, ice blocks…etc.
(1) An adjustable former is equipped in this machine, different sizes can be adjusted at any time(in order to improve the traditional fixed former).
(2) Movable sealing, cutting position can be adjusted at any time.
|
Length (CM) |
470 |
|
Width (CM) |
100 |
|
Height(CM) |
200 |
|
Net Weight (N.W KG) |
750 |
|
Gross Weight (G.W KG) |
1050 |
|
Voltage (V) |
220 |
|
Main motor (HP) |
Servo motor 1 HP(AC) |
|
Electric Heater (KW) |
2.4 KW , 220V |
|
Control System |
HCI Smart Face Panel |
|
Frequency (HZ) |
60 |
|
Safety Device |
Emergency Stop Button |
|
Sealing style |
Continuous sealing with heated crimp wheel and straight bar end seal |
|
Sealing Structure |
Adjustable rotating end seal bars |
|
Sealing Style |
Former, controls film & Heat melt |
|
Feeding Method |
Bucket Conveyor |
|
Discharge Method |
Belt conveyor(Option) |
|
Sealing Sides |
Back sides sealing |
|
Packing Speed(Bags/mm) |
5-80 ppm depending on packing size & material |
|
Max. Width of Packing Material(mm) |
500 |
