Product ID: TD-220SCInquiry

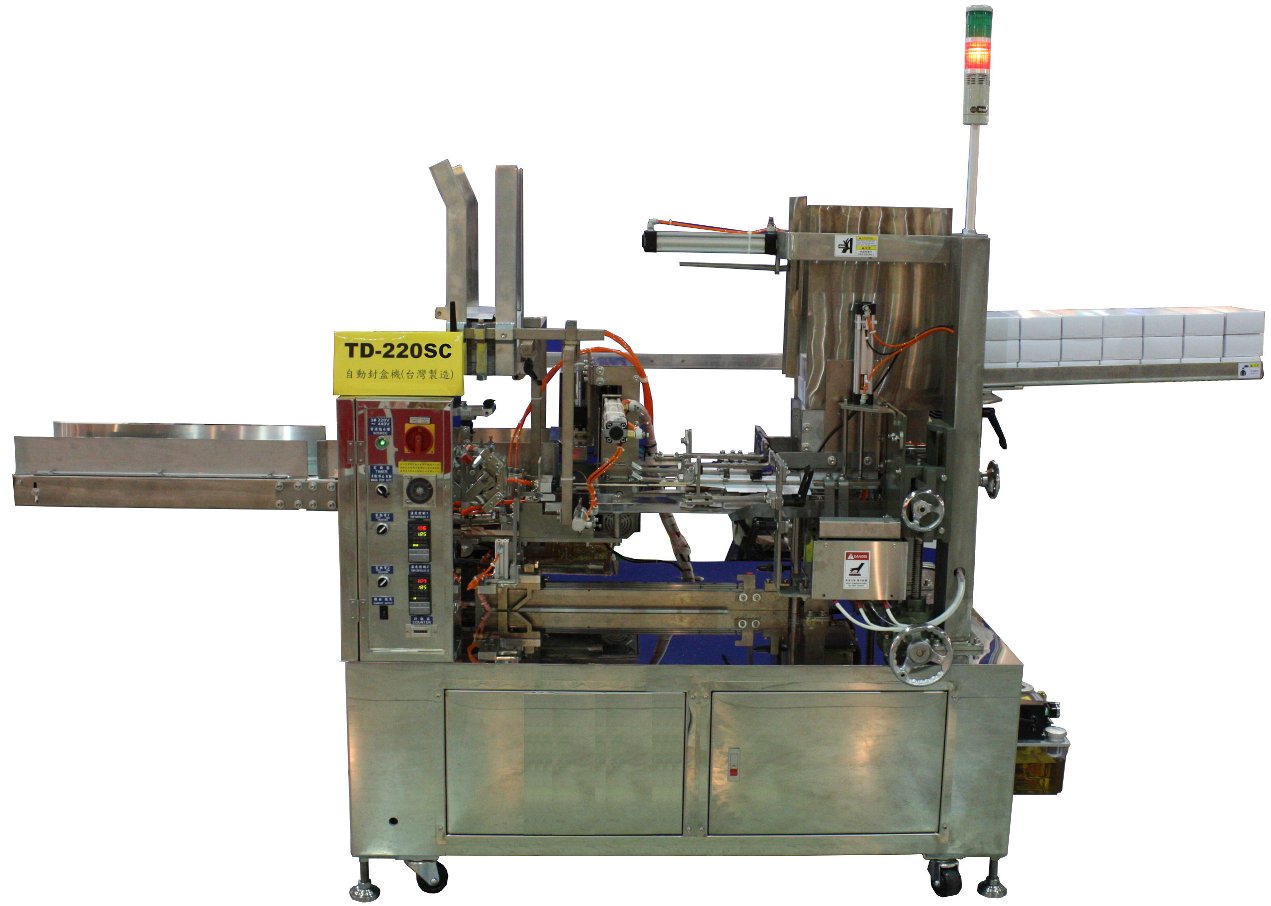

TD-220SC Auto Carton Filling and Sealing Machine is to carry out all types of carton sealing adhesive.
This machine uses integrated technology with stable performance, simple operation and automatization.
Suitable for unitary shape automatic packaging.
It adopts speed controlling and automatic controlling system integrating photocells and pneumatic devices.
TD-220SC is user-friendliness, featuring fast speed and cost efficiency.
Flat conveyor with fully automatic box opening, box stuffing, box gluing, box closing, box lifting and box delivering back.
|
Size and Weight |
|
|
Total Length (cm) |
325 |
|
Total Width (cm) |
130 |
|
Total Height (cm) |
172 |
|
Net Weight(N.W.kg) |
800 |
|
Gross Weight (G.W.Kg) |
1,000 |
|
Electric |
|
|
Voltage (V) |
220 |
|
Main Motor(HP) |
3 (AC) |
|
Package |
|
|
Max. Packing Size (mm) |
160-210 Length |
|
Air Compressor |
|
|
Working Pressure (Mpa) |
0.6 |
|
Motor Rate (HP) |
3 |
|
Free Air Delivery (NL/min) |
1,000 |
